Vanderveen TRANS SE-10 valve amp

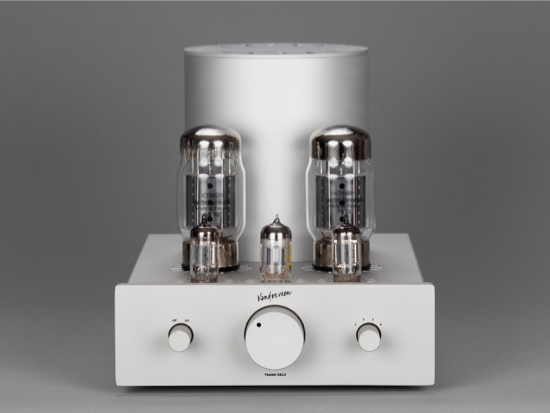

SE10-foto-2

The Trans-SE10 is an A4-sized stereo tube amplifier kit with Trans valve-electronics. The electronic design stems from Menno van der Veen (ir. bureau Vanderveen). Mechanical design and kit manufacturing is by Guido Tent (Tentlabs).

This DIY kit comes with all parts required. The cabinet is partly pre assembled. The high quality 70um PCB needs full assembly. High quality parts are used throughout. All transformers are Vanderveen-Toroidals manufactured by Trafco in Serbia. The kit comes standard with KT88 power tubes; alternatives can be applied.

The pdf format construction manual is totally based on pictures. They tell more than many words and logically guide you through the construction process.

Specifications:

Amplifier: Vanderveen-Trans-SE10 All-Valve Amplifier-Kit
Output Power: 2 x 10 Watt (2 x 12 Watt at onset of clipping)
Valves per kit: ECC83; 2 x ECF802; 2 x KT88
Alternatives for KT88: 6550 or KT90 or KT120 or KT150
Inputs: 4 stereo RCA-inputs, all 50 kΩ.
Input sensitivity: 310 mV for 10 Watt in 4 or 8 Ω load
Volume control: Alps
Speaker outputs: 4 Ω and 8 Ω
Frequency range: 9 Hz to 60 kHz (-3 dB @ 1 W in 4 Ω)
Distortion: 0,05 % (D2 @ 1kHz @ 1 W in 4 Ω)
Power Bandwidth: 30 Hz to 60 kHz (- 3 dB)
Damping Factor: 7 (at 4 and 8 Ω outputs)
Mains voltages: internally selected 110-120 or 220-240 Vac @ 50/60 Hz
Dimensions: W x H x D = 22 x 23 x 33 cm
Mass: 8 kg
Specifications: Subject to change or improve without any further notification.
Distribution: Mennovanderveen.nl & Tentlabs.com
Price and delivery: Inside EU: the price mentioned includes tax and shipment.
Outside EU: we will inform about costs and delivery.
Orders: Go to our shop

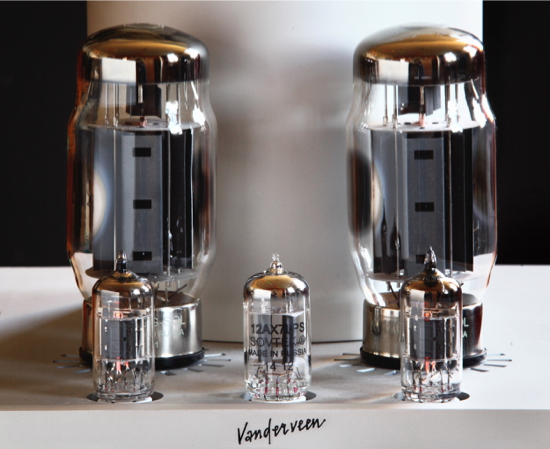

SE10-foto-3

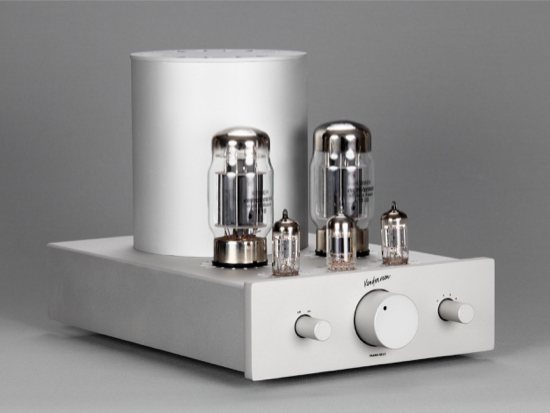

SE10-foto-4

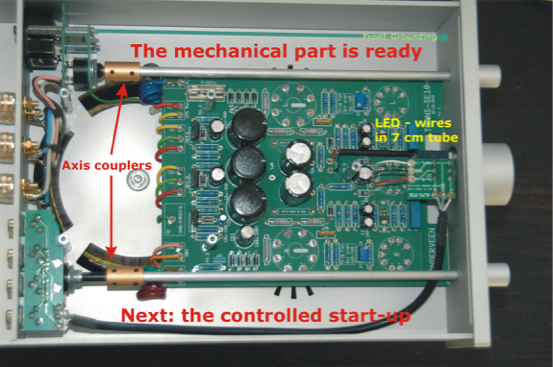

SE10-foto-73
